- Top plate speed: 650 r/min
- Top printing speed: 400 m/min
- Printing precision: 0.1 mm or less uniform printing error, speed error is 0.15 mm or less
- Early set of quasi error: 10 mm or less
- Maximum adjustment speed: print roller rotation week period, a quarter of a plate circumference.
- Color control: Electronic shaft+ Longitudinal control +transverse control +Multi-head printing.
- Special processes: Single marking, Front and back registration, Varnish registration, Second-time overprinting, Pre-register, Extended I/O, servo/stepping correction, Flexo printing machine.

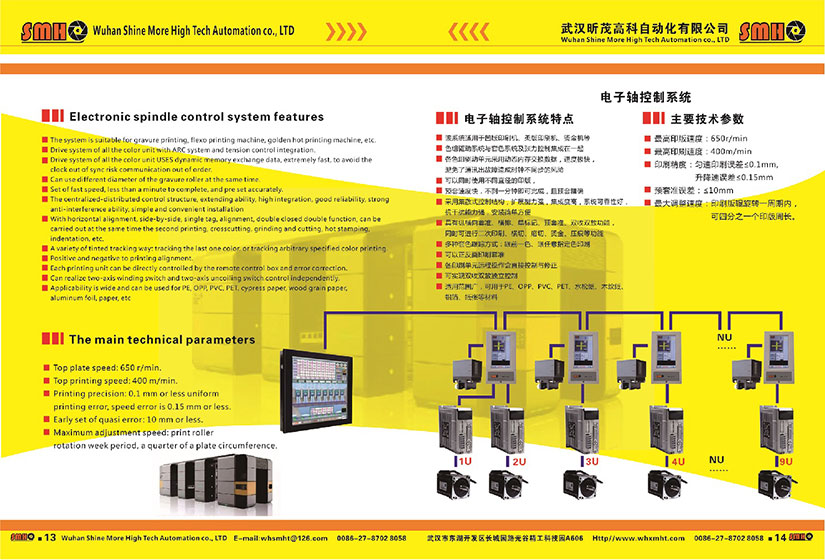

Electronic spindle control system features:
1 、 The system is suitable for gravure printing, flexo printing machine, golden hot printing machine, etc.
2、Drive system of all the color unit with ARC system and tension control integration.
3、Drive system of all the color unit USES dynamic memory exchange data, extremely fast, to avoid the clock out of sync risk communication out of order.
4、Can use different diameter of the gravure roller at the same time.
5、Set of fast speed, less than a minute to complete, and pre set accurately.
6、The centralized-distributed control structure, extending ability, high integration, good reliability, strong anti-interference ability, simple and convenient installation
7、With horizontal alignment, side-by-side, single tag, alignment, double closed double function, can be carried out at the same time the second printing, crosscutting, grinding and cutting, hot stamping, indentation, etc.
8 、A variety of tinted tracking way: tracking the last one color, or tracking arbitrary specified color printing.
9、Positive and negative to printing alignment.
10、Each printing unit can be directly controlled by the remote control box and error correction.
11、Can realize two-axis winding switch and two-axis uncoiling switch control independently.
12、Applicability is wide and can be used for PE, OPP, PVC, PET, cypress paper, wood grain paper, aluminum foil, paper, etc
